Tapping In T-Connectors

Written by hitchweb Team
Thursday, November 17, 2011 — 2 Comments

The only way to tap into the towing vehicles power is to interrupt the circuit somewhere along the line. There are several electrical components that can be used to accomplish this interruption. The key is to know what type of wiring components the vehicle already has from factory.

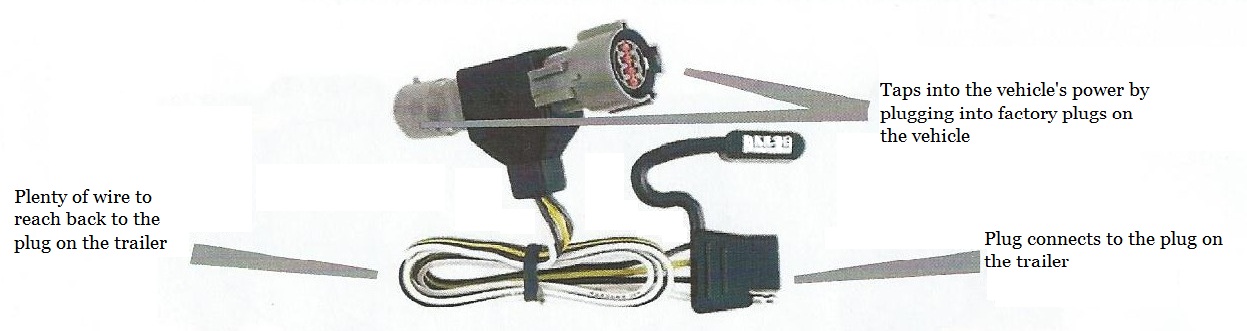

T-Connectors are small aftermarket wiring components, in the shape of a T, that plug directly into pre-existing plugs on the vehicle. Those pre-existing plugs have been installed on the vehicle from the factory for the specific purpose of allowing a T-Connector to tap into it's power! Here is what a T-Connector looks like:

Tapping in T-Connectors

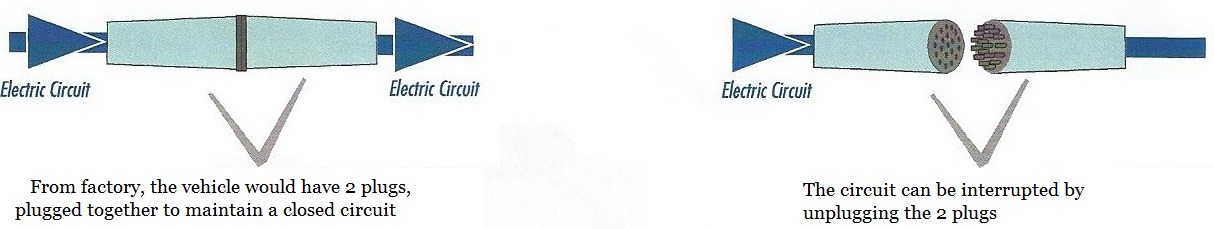

Here is what the vehicle wiring looks like when it has been configured at factory to accept a T-Connector:

Factory wired for t-connector

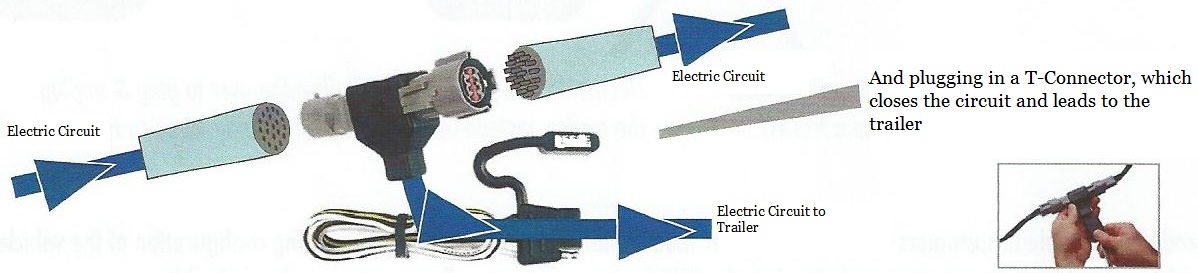

 Here, the vehicles plugs are being plugged into a T-Connector:

Plugging vehicle to t-connector

T-Connectors are application sensitive. There is a specific part number for different makes, years, and models of vehicles. Use our vehicle wiring guide to find the T-Connector suitable for your vehicle.

We hope this blog could be of great help - If you have any issues or concerns please contact our team via Live Chat, Email, Or call 800-300-4067.

Posted in Towing 101
