How To Enlarge Frame Rail Holes For 24792 Hitch

Written by Hitchweb Team
Thursday, November 17, 2016 — No Comments Yet

 I just received my hitch #24792  and the installation instructions say no drilling required but it also says enlarge existing hole in both frame rails. How can this be done?

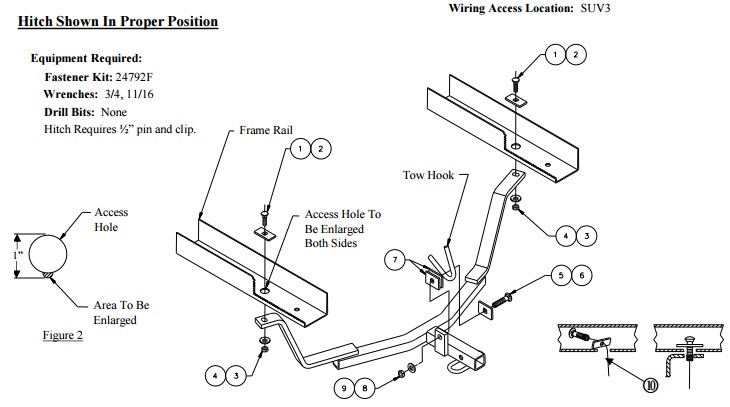

Step 2 on the installation instructions say to enlarge the exisitng hole in both frame rails to allow access for 1.00 X 3.00 spacers to be inserted as shown in figure 2.

You can do this a couple of different ways. You can either take a rotary tool to work out the side or you can take a standard chisel and do it that way as well.

60869 installation instruction hitch image figures 1 & 2

For further installation help click on the link to view the 24792 Trailer Hitch Installation Instructions or call our team at 1-800-300-4067
